Product Summary
The RD16HHF1 is a silicon mosfet power transistor. The RD16HHF1 is designed for HF RF power amplifiers applications.
Parametrics
RD16HHF1 absolute maximum ratings: (1)VDSS Drain to source voltage Vgs=0V: 50 V; (2)VGSS Gate to source voltage Vds=0V: +/- 20 V; (3)Pch Channel dissipation Tc=25℃: 56.8 W; (4)Pin Input power Zg=Zl=50Ω: 0.8 W; (5)ID Drain to source current: 5 A; (6)Tch Channel temperature: 150 ℃; (7)Tstg Storage temperature: -40 to +150 ℃; (8)Rth j-c Thermal resistance junction to case: 2.2 ℃/W.
Features
RD16HHF1 features: (1)High power gain: Pout>16W, Gp>16dB @Vdd=12.5V,f=30MHz.

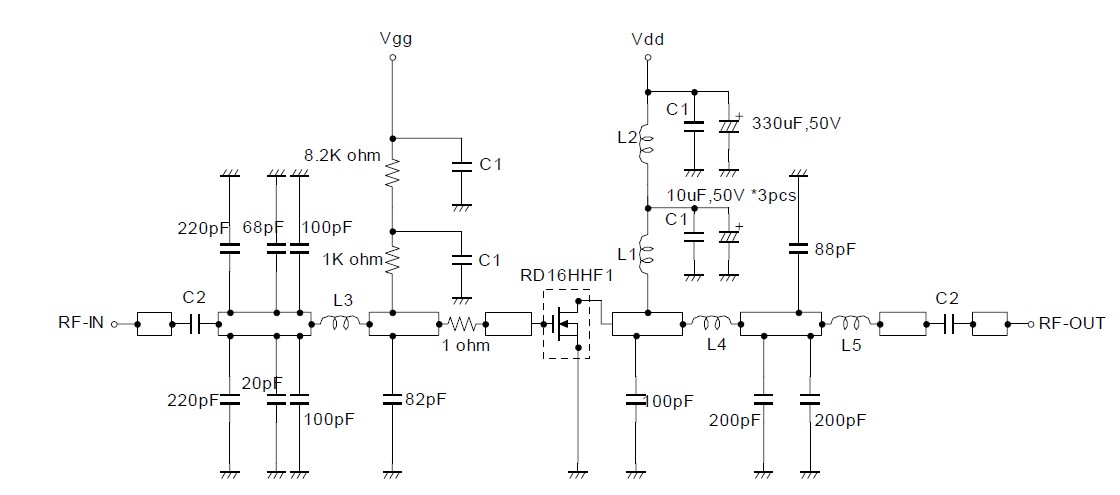

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RD16HHF1 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
