Product Summary

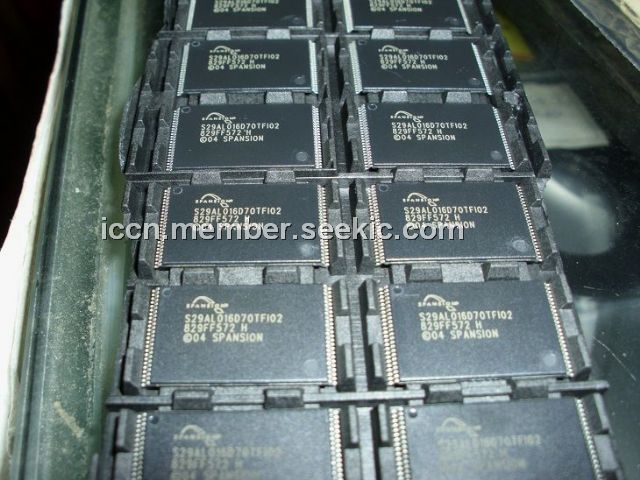

The S29AL016D70TFI02 is a 16 Mbit, 3.0 Volt-only Flash memory organized as 2,097,152 bytes or 1,048,576 words. The device is offered in 48-ball FBGA, and 48-pin TSOP packages. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device is designed to be programmed in-system with the standard system 3.0 volt VCC supply. A 12.0 V VPP or 5.0 VCC are not required for write or erase operations. The device can also be programmed in standard EPROM programmers. The S29AL016D70TFI02 offers access times of 70 ns and 90 ns allowing high speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls. The S29AL016D70TFI02 requires only a single 3.0 volt power supply for both read and write functions. Internally generated and regulated voltages are provided for the program and erase operations.
Parametrics
S29AL016D70TFI02 absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground; (4)VCC: -0.5 V to +4.0 V; (5)Output Short Circuit Current: 200 mA.
Features
S29AL016D70TFI02 features: (1)Full voltage range: 2.7 to 3.6 volt read and write operations for battery-powered applications; (2)Fully compatible with 0.23 μm Am29LV160D and MBM29LV160E devices; (3)Access times as fast as 70 ns; (4)200 nA Automatic Sleep mode current; (5)200 nA standby mode current; (6)9 mA read current; (7)20 mA program/erase current.
