Product Summary

The LTM8020V is a complete 200mA, DC/DC step down power supply including the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 4V to 36V, the LTM8020V supports an output voltage range of 1.25V to 5V, set by a single resistor. Only bulk capacitors are needed to fi nish the design.

Parametrics

LTM8020V absolute maximum ratings: (1)VIN, SHDN Voltage: 40V; (2)ADJ Voltage: 5V; (3)BIAS Voltage: 25V; (4)VIN + BIAS Voltage: 47V; (5)VOUT Voltage: 10V; (6)Internal Operating Temperature Range: –40℃ to 125℃; (7)Storage Temperature Range: –55℃ to 125℃; (8)Maximum Solder Temperature: 260℃.

Features

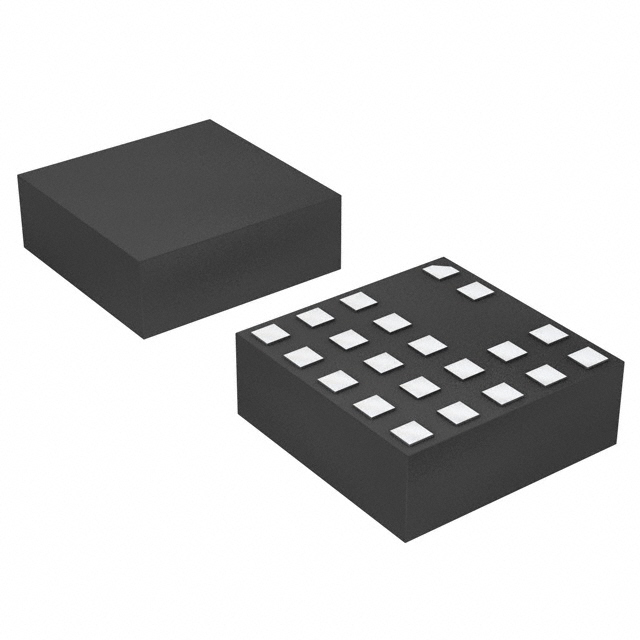

LTM8020V features: (1)Complete Step-Down Switch Mode Power Supply; (2)Wide Input Voltage Range: 4V to 36V; (3)1.25V to 5V Output Voltage; (4)200mA Output Current; (5)Current Mode Control; (6)–55℃ to 125℃ Operating Temperature; (7)Pb-Free (e4) RoHS Compliant Package with Gold Pad Finish; (8)Tiny, Low Profi le (6.25mm × 6.25mm × 2.32mm) Surface Mount LGA Package.

Diagrams

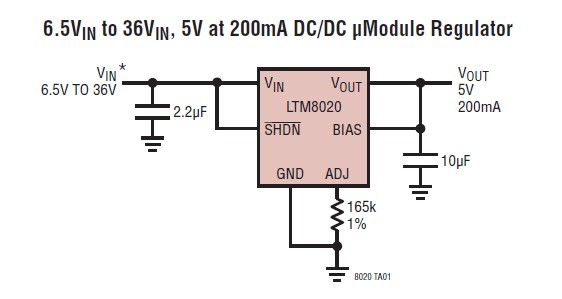

LTM8020V typical application
