Product Summary
The FDS4410 is a N-Channel Logic Level MOSFET. The FDS4410 has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. The FDS4410 features faster switching and lower gate charge than other MOSFETs with comparable RDS(ON) specifications. The result is a MOSFET that is easy and safer to drive (even at very high frequencies), and DC/DC power supply designs with higher overall efficiency
Parametrics
FDS4410 absolute maximum ratings: (1)VDSS Drain-Source Voltage: 30 V; (2)VGSS Gate-Source Voltage: ±20 V; (3)ID Drain Current - Continuous: 10 A; Pulsed: 50A; (4)PD Power Dissipation for Single Operation: 2.5 W; (5)TJ,TSTG Operating and Storage Temperature Range: -55 to 150℃.
Features
FDS4410 features: (1)10 A, 30 V. RDS(ON)= 0.0135 Ω @ VGS = 10 V; RDS(ON) = 0.0200 Ω @ VGS = 4.5 V; (2)Optimized for use in switching DC/DC converters with PWM controllers; (3)Very fast switching; (4)Low gate charge (typical 22 nC).

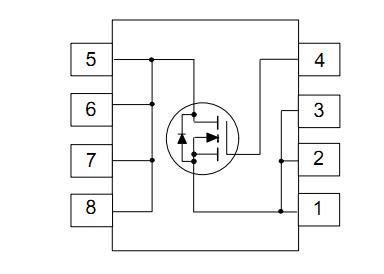

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FDS4410 |
Fairchild Semiconductor |
MOSFET SO-8 N-CH 30V |
Data Sheet |
Negotiable |
|
||||||||||||
|
FDS4410A |
Fairchild Semiconductor |
MOSFET LOGIC LEVEL PO SINGLE NCH |
Data Sheet |
|
|
||||||||||||
