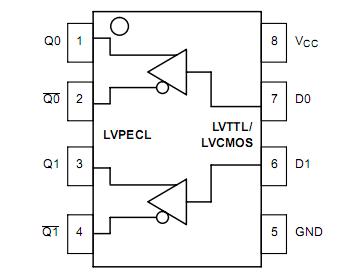

The MC100LVELT22DR2G is a dual LVTTL/LVCMOS to differential LVPECL translator. Because LVPECL (Low Voltage Positive ECL) levels are used, only +3.3 V and ground are required. The small outline 8-lead package and the low skew, dual gate design of the MC100LVELT22DR2G makes it ideal for applications which require the translation of a clock and a data signal.
Parametrics
MC100LVELT22DR2G absolute maximum ratings: (1)Positive Power Supply:7 V; (2)Input Voltage:7 V; (3)Output Current:Continuous:50mA, Surge:100mA; (4)Operating Temperature Range:-40℃ to +85℃; (5)Storage Temperature Range:-65℃ to +150℃; (6)Thermal Resistance (Junction-to-Ambient):0 lfpm: 190℃/W, 500 lfpm:130℃/W; (7)Thermal Resistance (Junction-to-Case):41 to 44 ± 5%℃/W.
Features
MC100LVELT22DR2G features: (1)350 ps Typical Propagation Delay; (2)<100 ps Output-to-Output Skew; (3)Flow Through Pinouts; (4)The 100 Series Contains Temperature Compensation; (5)LVPECL Operating Range: VCC = 3.0 V to 3.8 V with GND = 0 V; (6)When Unused TTL Input is left Open, Q Output will Default High; (7)Pb-Free Packages are Available.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC100LVELT22DR2G |
ON Semiconductor |
Translation - Voltage Levels 3.3V Dual LVTTL/ LVCMOS to LVPECL |
Data Sheet |
|
|
||||||||||||
