ADP3209JCPZ

Product Summary

The ADP3209JCPZ is a highly efficient, single-phase, synchronous buck switching regulator controller. With its integrated drivers, the ADP3209JCPZ is optimized for converting the notebook battery voltage to render the supply voltage required by high performance Intel chipsets. An internal 5-bit DAC is used to read a VID code directly from the chipset and to set the GMCH core voltage to a value within the range of 0.4 V to 1.25 V. The applications of the ADP3209JCPZ inlcude Notebook power supplies for next-generation Intel chipsets.

Parametrics

ADP3209JCPZ absolute maximum ratings: (1)VCC: -0.3 V to +6 V; (2)FBRTN, PGND: -0.3 V to +0.3 V; (3)BST, DC: -0.3 V to +25 V; t < 200 ns: -0.3 V to +30 V; (4)DRVH, SW DC: -5 V to +20 V; t < 200 ns: -10 V to +25 V; (5)DRVL to PGND, DC: -0.3 V to +6 V; t < 200 ns: -5 V to +6 V; (6)RAMP (in Shutdown) , DC: -0.3 V to +20 V; t < 200 ns: -0.3 V to +25 V; (7)All Other Inputs and Outputs: -0.3 V to +6 V; (8)Storage Temperature: -65℃ to +150℃; (9)Operating Ambient Temperature Range: 0℃ to 100℃ ; (10)Operating Junction Temperature: 125℃; (11)Thermal Impedance (θJA) 2-Layer Board: 32.6℃/W; (12)Lead Temperature, Soldering (10 sec): 300℃; Infrared (15 sec): 260℃.

Features

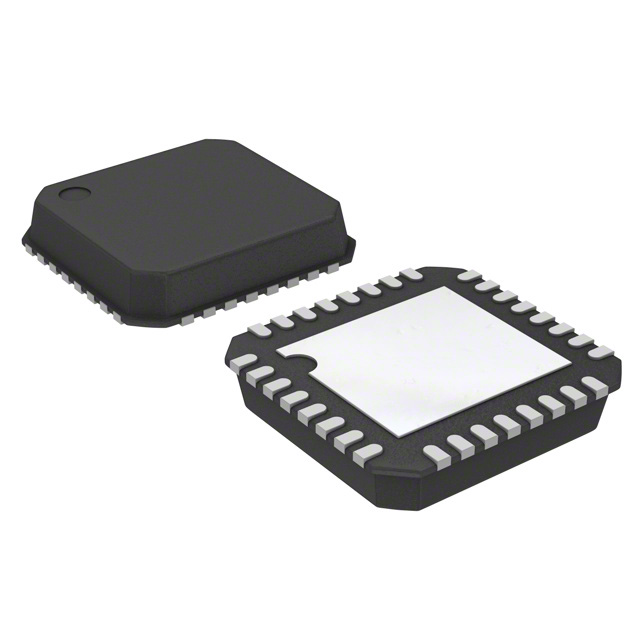

ADP3209JCPZ features: (1)Single-chip solution: Fully compatible with the Intel? GMCH chipset voltage; regulator specifications; Integrated MOSFET drivers; (2)±8 mV worst-case differentially sensed core voltage error over temperature; (3)Automatic power-saving modes maximize efficiency during light load operation; (4)Soft transient control reduces inrush current and audio noise ; (5)Independent current limit and load line setting inputs for additional design flexibility; (6)Built-in power-good masking supports voltage identification (VID) on-the-fly transients; (7)5-bit, digitally programmable DAC with 0.4 V to 1.25 V output; (8)Short-circuit protection with programmable latch-off delay; (9)Output power or current monitor options; (10)32-lead LFCSP.

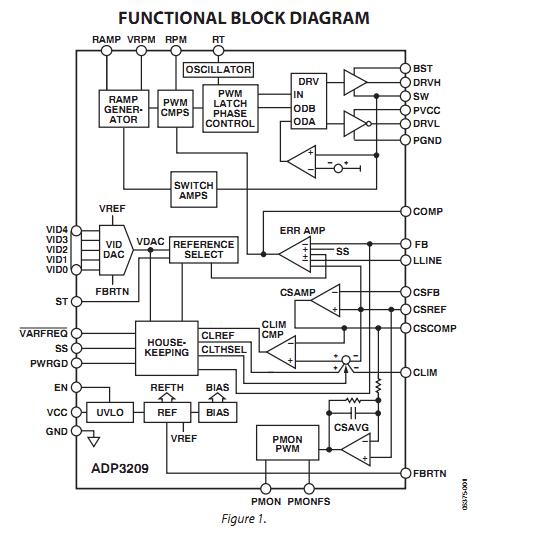

Diagrams
