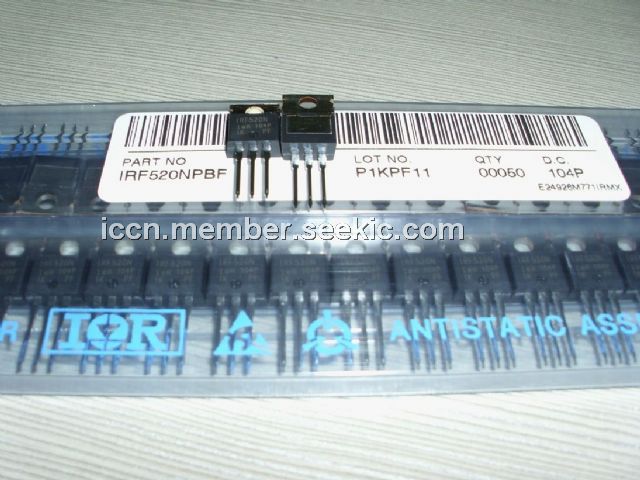

IRF520N

international rectifier, TO-220, Fast Switching, 0.32 W, 6.8 A, 4.8 mJ, Advanced Process Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.34~0.39 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.34~0.39

PartNumber:: IRF520N

Brand:: International Rectifier - IR | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-23

From Other Seller

Part Number:IRF520N
US $0.34 - 0.39
LM285M-2.5

US $0.16 - 0.25 / Piece
(0) Remove
P102W

US $15.00 - 22.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF520N is a international rectifier. Fifth Generation HEXFET IRF520N from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFET IRF520N is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRF520N absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 9.7; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 6.8 A; (3)IDM Pulsed Drain Current: 38; (4)PD @TC = 25℃ Power Dissipation: 48 W; (5)Linear Derating Factor: 0.32 W/℃; (6)VGS Gate-to-Source Voltage: ± 20 V; (7)EAS Single Pulse Avalanche Energy: 91 mJ; (8)IAR Avalanche Current: 5.7 A; (9)EAR Repetitive Avalanche Energy: 4.8 mJ; (10)dv/dt Peak Diode Recovery dv/dt: 5.0 V/ns; (11)TJ Operating Junction and: -55 to + 175℃.

Features

IRF520N features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated.
