Product Summary

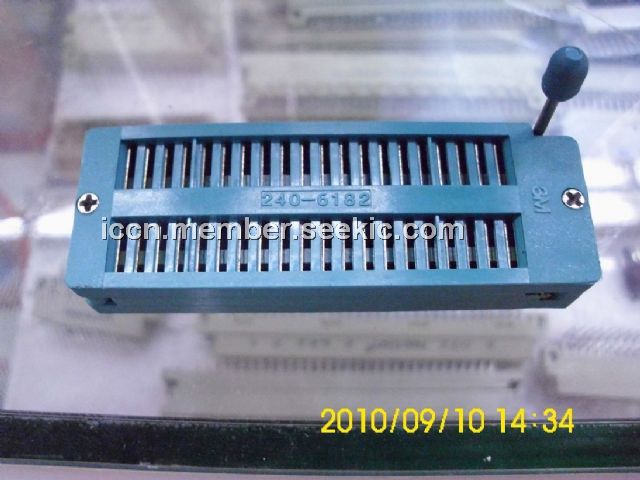

The 240-6182 is a universal DIP socket.

Parametrics

240-6182 absolute maximum ratings: (1)Current Rating: 1 Amp; (2)Insulation Resistance > 1 10 9 Ω at 500 Vdc; (3)Withstanding Voltage: 1000 Vrms at Sea Level; (4)Operating Temperature Rating: - 55 to +150℃.

Features

240-6182 features: (1)For DIPs with 100" (2.54 mm) lead spacing; (2)Extra wide contact zone allows insertion of DIP with distance between rows from .300" (7.62 mm) through 600" (15.24 mm); (3)Lever actuated zero insertion force mechanism; (4)Socket contact point of .090" (2.29 mm) below top surface of socket

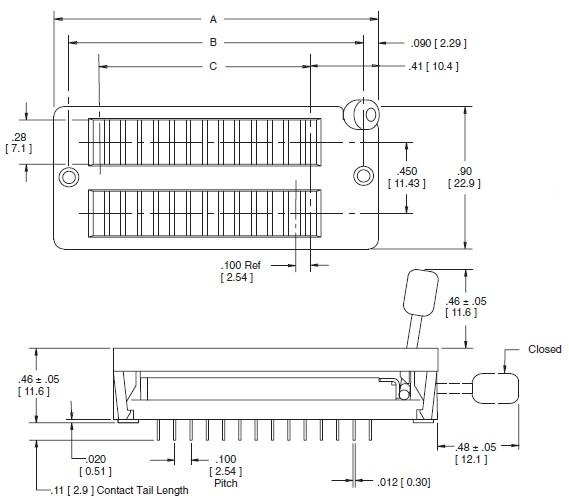

Diagrams

240-6182 Contact Tail Length applies only on 42 position socket
