DS18B20

1-Wire Digital Thermometer, TO-92, Alarm Search Command Identifies, 3.0V to 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.75~0.85 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.75~0.85

PartNumber:: DS18B20

Brand:: Maxim Integrated Products - Maxim | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-06

From Other Seller

Part Number:DS18B20
US $0.75 - 0.85
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

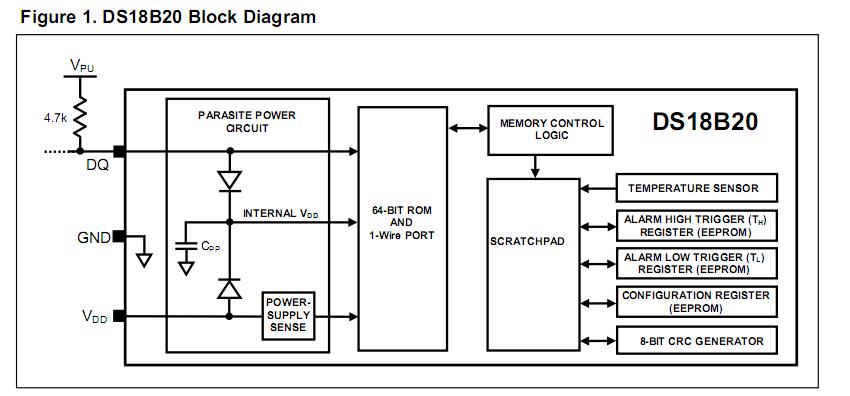

The DS18B20 is a 1-Wire Digital Thermometer. It provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central microprocessor. The applications of the DS18B20 are Thermostatic Controls, Industrial Systems, Consumer Products, Thermometers, or Any Thermally Sensitive System.

Parametrics

DS18B20 absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground:-0.5V to +6.0V ; (2)Operating Temperature Range:-55℃ to +125℃; (3)Storage Temperature Range:-55℃ to +125℃.

Features

DS18B20 features: (1)Unique 1-Wire Interface Requires Only One Port Pin for Communication ; (2)Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM ; (3)Multidrop Capability Simplifies Distributed Temperature-Sensing Applications ; (4)Requires No External Components ; (5)Can Be Powered from Data Line; Power Supply Range is 3.0V to 5.5V ; (6)Measures Temperatures from -55℃ to +125℃; (7)±0.5℃ Accuracy from -10℃ to +85℃; (8)Thermometer Resolution is User Selectable from 9 to 12 Bits ; (9)Converts Temperature to 12-Bit Digital Word in 750ms (Max).
