Product Summary

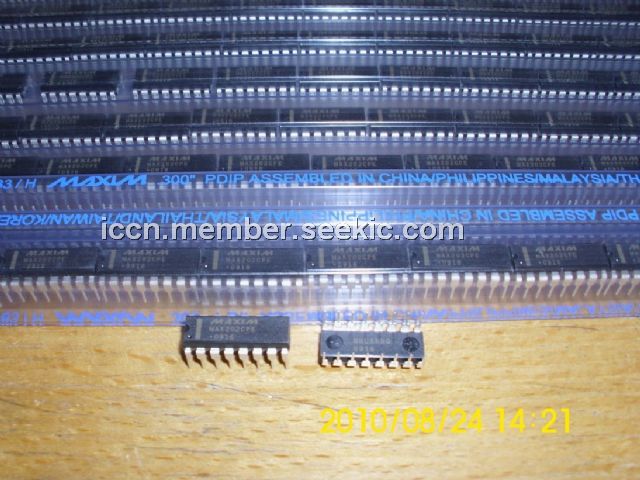

The MAX202CPE is a 5V, RS-232 transceiver with 0.1μF external capacitor. The MAX202CPE transceiver is designed for RS-232 and V.28 communication interfaces where Q12V supplies are not available. On-board charge pumps convert the +5V input to the Q10V needed for RS-232 output levels. The MAX202CPE operates from +5V and +12V, respectively, and contain a +12V to -12V charge-pump voltage converter.
Parametrics
MAX202CPE absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to -14V; (4)Input Voltages TIN: -0.3V to (VCC + 0.3V); (5)RIN: Q30V; (6)Output Voltages TOUT: (V+ + 0.3V) to (V- 0.3V); (7)ROUT: -0.3V to (VCC + 0.3V); (8)Short-Circuit Duration TOUT: Continuous; (9)Storage Temperature Range: -65 to +160℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX202CPE features: (1)Low-Cost; (2)Space-Constrained; (3)Low-Power.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX202CPE |
Maxim Integrated Products |
RS-232 Interface IC |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX202CPE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V RS-232 Tcvr w/0.1uF External Cap |
Data Sheet |
|
|
||||||||||||
