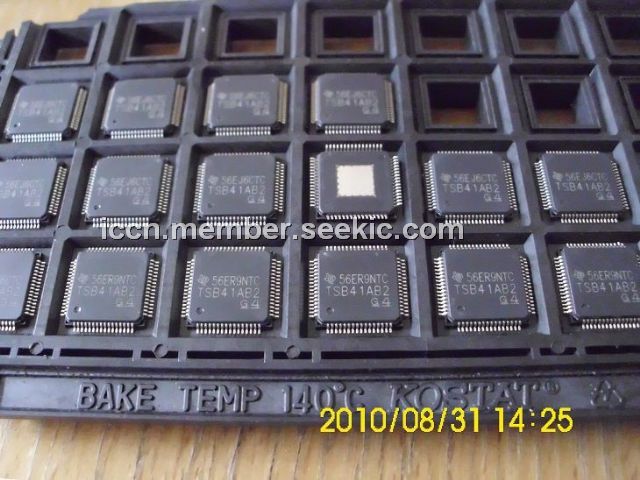

Product Summary

The TSB41AB2PAP is a two-port cable transceiver. The TSB41AB2PAP provides the digital and analog transceiver functions needed to implement a two-port node in a cable-based IEEE 1394 network. The cable ports incorporate two differential line transceivers. The transceivers include circuitry to monitor the line conditions as needed for determining connection status, for initialization and arbitration, and for packet reception and transmission. The TTSB41AB2PAP is designed to interface with a link layer controller (LLC).

Parametrics

TSB41AB2PAP absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 4 V; (2)Input voltage range, VI: -0.5 V to VDD + 0.5 V; (3)Output voltage range at any output, VO: -0.5 V to VDD + 0.5V; (4)Operating free air temperature, TA: 0 to 70℃; (5)Storage temperature range, Tstg: -65 to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TSB41AB2PAP features: (1)Software Device Reset (SWR); (2)Industry Leading Low Power Consumption; (3)Ultralow-Power Sleep Mode; (4)Cable Power Presence Monitoring; (5)Cable Ports Monitor Line Conditions for Active Connection to Remote Node; (6)Provides Two IEEE 1394a-2000 Fully Compliant Cable Ports at 100/200/400 Megabits Per Second (Mbits/s); (7)Full IEEE 1394a-2000 Support Includes: Connection Debounce, Arbitrated Short Reset, Multispeed Concatenation, Arbitration Acceleration, Fly-By Concatenation, Port Disable/Suspend/Resume.

Diagrams

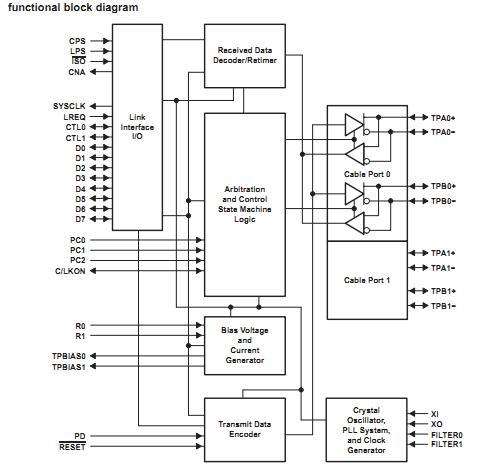

TSB41AB2PAP functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TSB41AB2PAP
TSB41AB2PAP
Texas Instruments
Buffers & Line Drivers Two-Port Cable Xcvr/Arbiter
Data Sheet
0-1: $3.28
1-25: $3.00
25-100: $2.40
100-250: $2.10
TSB41AB2PAPG4
TSB41AB2PAPG4
Texas Instruments
Buffers & Line Drivers Two-Port Cable Xcvr/Arbiter
Data Sheet
0-1: $3.28
1-25: $3.00
25-100: $2.43
100-250: $2.11
TSB41AB2PAPRG4
TSB41AB2PAPRG4
Texas Instruments
1394 Interface IC IEEE1394a 2Port Cable Xcvr/Arbiter
Data Sheet
0-645: $1.72
645-1000: $1.48
1000-2000: $1.45
2000-5000: $1.39
TSB41AB2PAPR
TSB41AB2PAPR
Texas Instruments
Buffers & Line Drivers Two-Port Cable Xcvr/Arbiter
Data Sheet
0-585: $1.72
585-1000: $1.48
1000-2000: $1.45
2000-5000: $1.39
