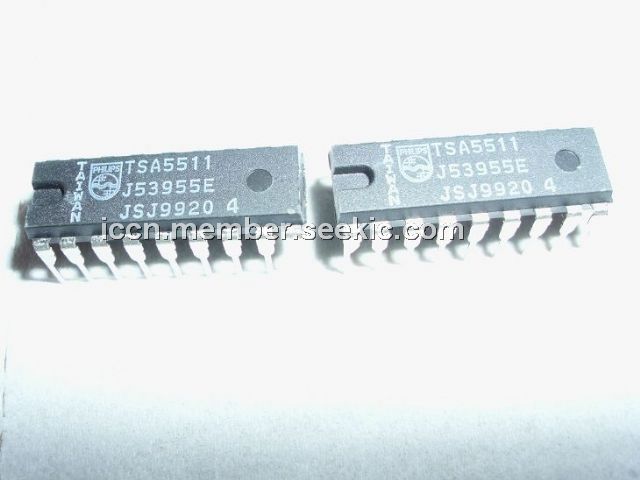

TSA5511

1.3 GHz, Bidirectional I2C-bus, controlled synthesizer, DIP16, 1.3 GHz single chip, Low power 5 V, 35 mA, In-lock flag

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.90~0.98 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.90~0.98

PartNumber:: TSA5511

Brand:: NXP Semiconductors - nxp | Pack: DIP | D/C: 99+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-26

From Other Seller

Part Number:TSA5511
US $0.90 - 0.98
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TSA5511 is a single chip PLL frequency synthesizer designed for TV tuning systems. Control data is entered via the I2C-bus; five serial bytes are required to address the device, select the oscillator frequency, programme the eight output ports and set the charge-pump current. Four of these ports can also be used as input ports (three general purpose I/O ports, one ADC). Digital information concerning those ports can be read out of the TSA5511 on the SDA line (one status byte) during a READ operation. A flag is set when the loop is in-lock and is read during a READ operation. The device has one fixed I2C-bus address and 3 programmable addresses, programmed by applying a specific voltage on Port 3. The phase comparator operates at 7.8125 kHz when a 4 MHz crystal is used.

Parametrics

TSA5511 absolute maximum ratings: (1)VCC supply voltage: -0.3 to 6 V; (2)V1 charge-pump output voltage: -0.3 to VCC V; (3)V2 crystal (Q1) input voltage: -0.3 to VCC V; (4)V4 serial data input/output voltage: -0.3 to 6 V; (5)V5 serial clock input voltage: -0.3 to 6 V; (6)V6-13 P7 to P0 input/output voltage: -0.3 to +16 V; (7)V15 prescaler input voltage: -0.3 to VCC V; (8)V18 drive output voltage: -0.3 to VCC V; (9)I6-9 P7 to P4 output current (open collector): -1 to 15 mA; (10)I4 SDA output current (open collector): -1 to 5 mA; (11)Tstg IC storage temperature range: -40 to +150 ℃; (12)Tj maximum junction temperature: - 150 ℃.

Features

TSA5511 features: (1)Complete 1.3 GHz single chip system; (2)Low power 5 V, 35 mA; (3)I2C-bus programming; (4)In-lock flag; (5)Varicap drive disable; (6)Low radiation; (7)Address selection for Picture-In-Picture (PIP), DBS tuner (3 addresses); (8)Analog-to-digital converter; (9)8 bus controlled ports (5 for TSA5511T), 4 current limited outputs (1 for TSA5511T), 4 open collector outputs (bi-directional); (10)Power-down flag.
