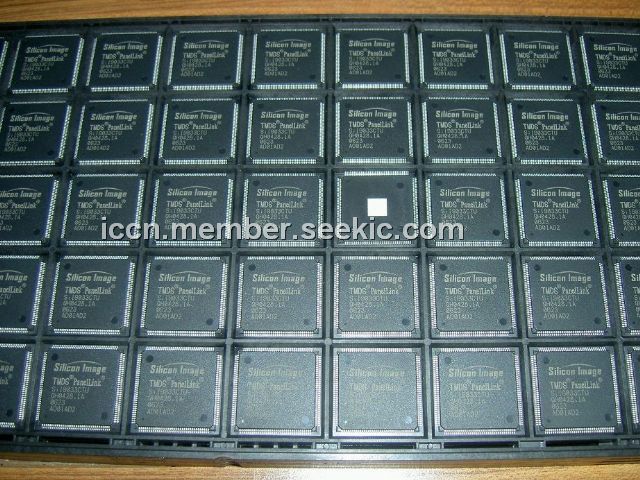

Product Summary

The SII9030CTU is a PanelLink Transmitter. It fits directly into home theater products, such as DVD players /recorders, A/V receivers, digital set-top boxes, personal video recorders (PVRs) and D-VHS players. To improve manufacturers’time-to-market and reduce design time, the SII9030CTU is backward compatible with first-generation PanelLink transmitters. In addition to all the features in the original PanelLink transmitter, the SII9030CTU supports the DVD Audio standard including 7.1-surround audio at 96kHz and stereo audio at 192kHz. The applications of it are DVD Players, DVD Recorders, A/V Receivers, Digital Set-top Boxes, PVRs, D-VHS Players.

Parametrics

SII9030CTU general specifications: (1)DVD-Audio support thru 4xI2S inputs; (2)Supports 2-channel 192kHz or 8-channel 96kHz; (3)Supports IEC60958 2-channel PCM or IEC61937 compressed audio(Dolby Digital, DTS, etc.); (4)Industry-standard S/PDIF input.

Features

SII9030CTU features: (1)HDMI 1.0; (2)DVI 1.0; (3)EIA/CEA-861B; (4)HDCP 1.1; (5)Integrated HDCP cipher engine ; (6)Pre-programmed HDCP keys; (7)Simplify manufacturing process; (8)Most secure solution available; (9)Lower system, manufacturing costs; (10)Encrypts both video and audio; (11)Register-programmable via slave I2C interface; (12)Master I2C simplifies system design; (13)Flexible interrupt registers with interrupt pin; (14)Monitor detection supported through hot plug and receiver detection; (15)1.8V core provides low-power operation; (16)Flexible power-down modes; (17)SiI 9030 Transmitter Stand Alone Board; (18)HDMI to HDMI cable; (19)HDMIGear Software Tool.

Diagrams

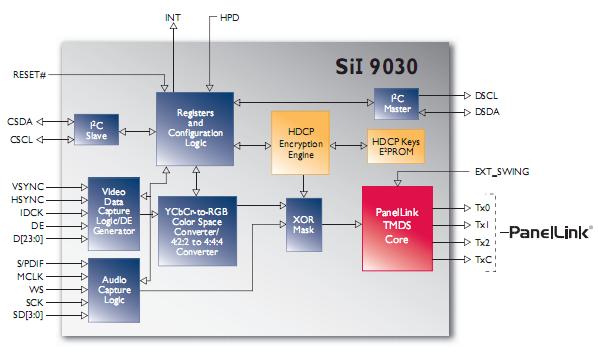

SII9030CTU block diagram
