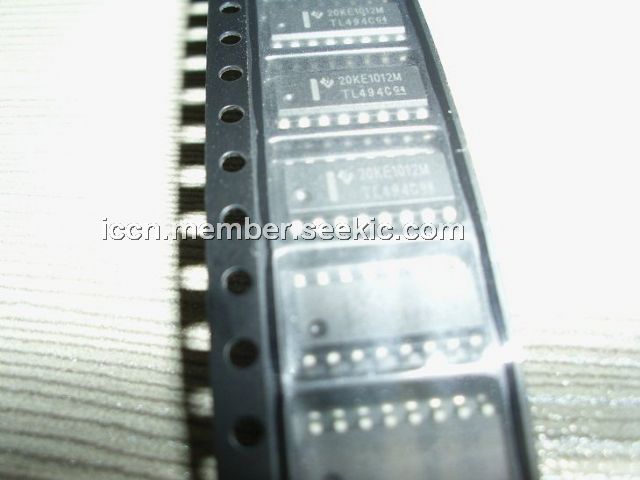

TL494CD

fixed frequency, pulse width modulation control circuit, 42 V, 500 mA, SOP16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.12~0.16 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.12~0.16

PartNumber:: TL494CD

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-03

From Other Seller

Part Number:TL494CD
US $0.12 - 0.16
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TL494CD is a fixed frequency, pulse width modulation control circuit designed primarily for SWITCHMODE power supply control.

Parametrics

TL494CD absolute maximum ratings: (1)Power Supply Voltage VCC: 42 V; (2)Collector Output Voltage VC1, VC2: 42 V; (3)Collector Output Current (Each transistor)IC1, IC2: 500 mA; (4)Amplifier Input Voltage Range VIR: –0.3 to +42 V; (5)Power Dissipation @ TA 3 45℃ PD: 1000 mW; (6)Thermal Resistance, Junction–to–Ambient RqJA: 80 ℃/W; (7)Operating Junction Temperature TJ: 125 ℃; (8)Storage Temperature Range Tstg: –55 to +125 ℃; (9)Operating Ambient Temperature Range TA: 0 to +70 ℃; (10)Derating Ambient Temperature TA: 45 ℃.

Features

TL494CD features: (1)Complete Pulse Width Modulation Control Circuitry; (2)On–Chip Oscillator with Master or Slave Operation; (3)On–Chip Error Amplifiers; (4)On–Chip 5.0 V Reference; (5)Adjustable Deadtime Control; (6)Uncommitted Output Transistors Rated to 500 mA Source or Sink; (7)Output Control for Push–Pull or Single–Ended Operation; (8)Undervoltage Lockout.
