Product Summary

The S3F9498XZZ-AO98 is an 8-bit single-chip CMOS microcontroller. It offers a fast and efficient CPU, a wide range of integrated peripherals, and various mask-programmable ROM sizes. The S3F9498XZZ-AO98 fabricated using the highly advanced CMOS process technology based on Samsung’s latest CPU architecture. The S3F9498XZZ-AO98 is ideal for use in a wide range of home applications requiring simple timer/counter, ADC and etc.

Parametrics

S3F9498XZZ-AO98 absolute maximum ratings: (1)Supply voltage: -0.3V to +6.5V; (2)Input voltage: -0.3V to VDD+0.3V; (3)Output voltage: -0.3V to VDD+0.3V; (4)Output current high: -25mA or -80mA; (5)Output current low: +30mA, +100mA or +200mA; (6)Operating temperature: -25℃ to +85℃; (7)Storage temperature: -65℃ to +150℃.

Features

S3F9498XZZ-AO98 features: (1)208-byte general purpose register (RAM) ; (2)8K-byte internal mask program memory ; (3)8K-byte internal multi time program memory Half-Flash; (4)41 instructions ; (5)IDLE and STOP instructions added for power-down modes; (6)Instruction Execution Time:500 ns at 8-MHz fOSC (minimum) ; (7)Interrupts:15 interrupt sources with one vector / one level ; (8)I/O Ports:Total 22/24/26 bit-programmable pins Basic Timer, One programmable 8-bit basic timer (BT) for Oscillation stabilization control; (9)The programmable 8-bit timer/counters; (10)Configurable as on 16-bit timer/counters; (11)Eight analog input channels ; (12)25us conversion speed at 8MHz fADC clock ; (13)One synchronous serial I/O module; (14)Selectable transmit and receive rates; (15)Low Voltage Check to make system reset; (16)VLVR = 3V (by smart option) ; (17)Programmable baud rate generator; (18)Support serial data transmit/receive operations with 8-bit, 9-bit UART.

Diagrams

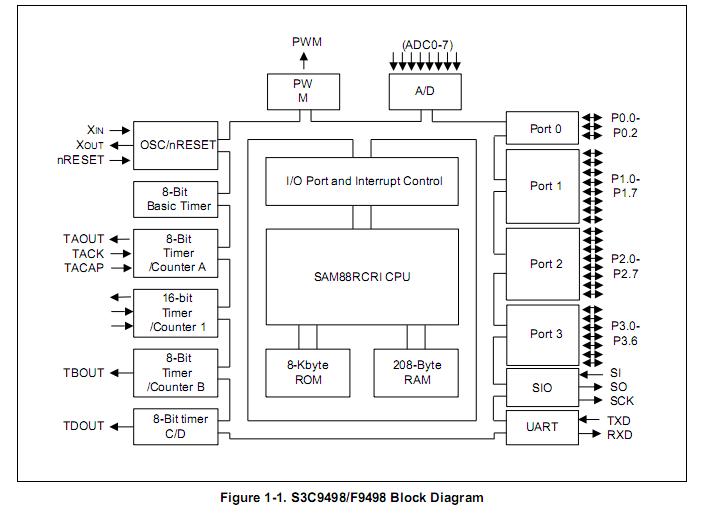

S3F9498XZZ-AO98 block diagram
