Product Summary

The AD8131ARM is a differential or single-ended input to differential output driver requiring no external components for a fixed gain of 2. The AD8131ARM is a major advancement over op amps for driving signals over long lines or for driving differential input ADCs. The applications of the AD8131ARM are Video line driver, Digital line driver, Low power differential ADC driver, Differential in/out level shifting, Single-ended input to differential output driver.

Parametrics

AD8131ARM absolute maximum ratings: (1)Supply Voltage:±5.5 V ; (2)VOCM:±VS; (3)Internal Power Dissipation:250 mW ; (4)Operating Temperature Range:-40℃ to +125℃; (5)Storage Temperature Range:-65℃ to +150℃; (6)Lead Temperature (Soldering 10 sec):300℃.

Features

AD8131ARM features: (1)High speed: 400 MHz, -3 dB full power bandwidth, 2000 V/μs slew rate ; (2)Fixed gain of 2 with no external components ; (3)Internal common-mode feedback to improve gain and phase balance: -60 dB @ 10 MHz ; (4)Separate input to set the common-mode output voltage ; (5)Low distortion: 68 dB SFDR @ 5 MHz 200 Ω load ; (6)Power supply range +2.7 V to ±5 V.

Diagrams

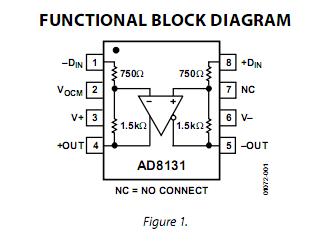

AD8131ARM block diagram
