Product Summary

The TPS76301DBVR is a low-dropout (LDO) voltage regulator. It offers the benefits of low-dropout voltage, low-power operation, and miniaturized packaging. The TPS76301DBVR features low dropout voltages and quiescent currents compared to conventional LDO regulators. Offered in a 5-terminal, small outline integrated-circuit SOT-23 package, the TPS76301DBVR is ideal for cost-sensitive designs and for applications where board space is at a premium.

Parametrics

TPS76301DBVR absolute maximum ratings: (1)Input voltage range:-0.3 V to 10 V; (2)Voltage range at EN:-0.3 V to VI + 0.3 V; (3)Voltage on OUT, FB:7 V; (4)Peak output current:Internally limited; (5)ESD rating, HBM:2 kV; (6)Operating junction temperature range:-40℃ to 150℃; (7)Storage temperature range:-65℃ to 150℃.

Features

TPS76301DBVR features: (1)150-mA Low-Dropout Regulator; (2)Output Voltage: 5 V, 3.8 V, 3.3 V, 3.0 V, 2.8 V, 2.7 V, 2.5 V, 1.8 V, 1.6 V and Variable; (3)Dropout Voltage, Typically 300 mV at 150 mA; (4)Thermal Protection; (5)Over Current Limitation; (6)Less Than 2-μA Quiescent Current in Shutdown Mode; (7)-40℃ to 125℃ Operating Junction Temperature Range; (8)5-Pin SOT-23 (DBV) Package.

Diagrams

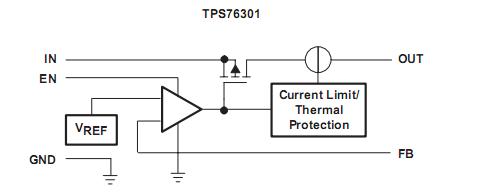

TPS76301DBVR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS76301DBVR
TPS76301DBVR
Texas Instruments
Low Dropout (LDO) Regulators Adj 150mA LDO
Data Sheet
0-1: $0.56
1-25: $0.43
25-100: $0.38
100-250: $0.31
TPS76301DBVRG4
TPS76301DBVRG4
Texas Instruments
Low Dropout (LDO) Regulators Low-Power 150-mA
Data Sheet
0-2050: $0.20
2050-3000: $0.18
3000-6000: $0.17
6000-12000: $0.17
