Product Summary

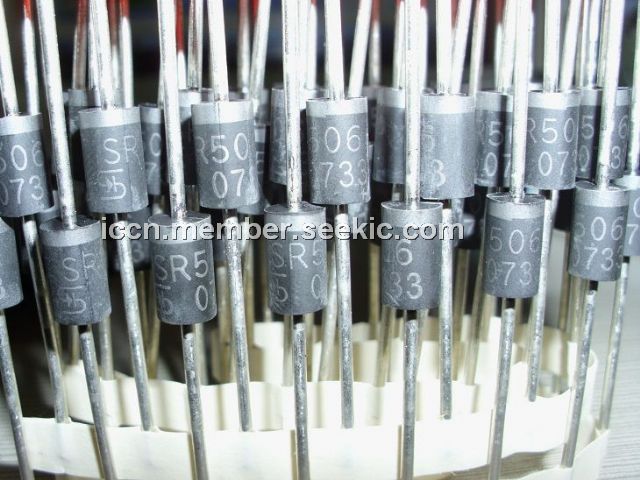

The SR506 is a high current schottky barrier rectifier.
Parametrics
SR506 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage VRRM: 60 V; (2)Maximum RMS Voltage VRSM: 42 V; (3)Maximum DC Blocking Voltage VDC: 60 V; (4)Maximum Average Forward Rectified @ TL = 90℃ Current 9.5mm lead length I(AV): 5.0 A; (5)Peak Forward Surge current 8.3ms half sine-wave Superimposed on Rated Load (JEDEC Method)IFSM: 150 A; (6)Maximum Forward Voltage @ 5.0A VF: 0.67 V; (7)Maximum Average Reverse Current at @ TA= 25℃ Peak Reverse Voltage @ TA = 100℃ IR: 50 mA; (8)Typical Thermal Resistance (Note 1)RJL: 10 K/W; (9)Typical Junction Capacitance (Note 2)CJ: 400 pF; (10)Storage and Operating Temperature Range TJ, TSTG: -65 to +150℃.
Features
SR506 features: (1)High Current Capability and Low Forward Drop; (2)High Surge Capacity; (3)Guard Ring for Transient Protection; (4)Low Power Loss, High Efficiency; (5)Plastic Material: UL Flammability Classification Rating 94V-0.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SR5060 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||
 |
SR506-T |
Diodes Inc. |
Schottky (Diodes & Rectifiers) 5.0A 60V |
Data Sheet |
Negotiable |
|
||||||||||||||
|
SR506 |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 5A 60V |
Data Sheet |
|
|
||||||||||||||
