Product Summary
The WRB0505ZP-6W is the dual/single output DIP DC-DC converter which is specially designed for applications where a wide range input voltage power supplies are isolated from the input power supply in a distributed power supply system on a circuit board.
Parametrics
WRB0505ZP-6W absolute maximum ratings: (1)Storage humidity: 95 %; (2)Operating temperature: -40 to 85 ℃; (3)Storage temperature: -55 to 125℃; (4)Temp. rise at full load: 40℃; (5)Lead temperature,1.5mm from case for 10 seconds: 300 max.℃; (6)Isolation resistance: 1000 min MΩ; (7)No-load power consumption: 500mW.
Features
WRB0505ZP-6W features: (1)Efficiency up to 86%; (2)Wide (2:1) Input Range; (3)1.5KVDC Input/Output Isolation; (4)Short circuit protection(automatic recovery); (5)Operating Temperature: -40 to +85℃; (6)Internal SMD construction; (7)Metal Shielding Package; (8)No Heat Sink Required; (9)Industry-Standard Pinout; (10)MTBF>1,000,000 hours; (11)RoHS Compliance.

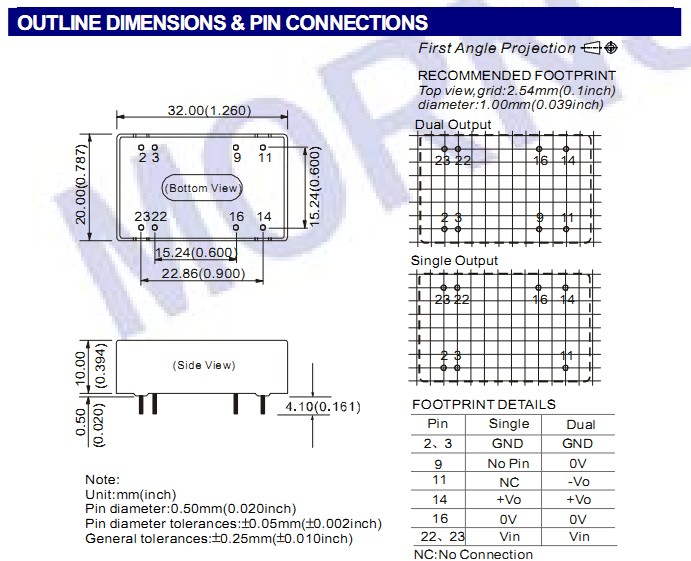

Diagrams
 |
