SST25VF016B-75-4I-S2AF

Product Summary

The SST25VF016B-75-4I-S2AF is a 16 Mbit SPI Serial Flash. It features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25VF016B-75-4I-S2AF is enhanced with improved operating frequency and even lower power consumption than the original SST25VFxxxA devices. The SST25VF016B-75-4I-S2AF is manufactured with SST’s proprietary, high-performance CMOS SuperFlash technology.

Parametrics

SST25VF016B-75-4I-S2AF absolute maximum ratings: (1)Temperature Under Bias:-55℃ to +125℃; (2)Storage Temperature:-65℃ to +150℃; (3)D. C. Voltage on Any Pin to Ground Potential:-0.5V to VDD+0.5V; (4)Transient Voltage (<20 ns) on Any Pin to Ground Potential:-2.0V to VDD+2.0V; (5)Package Power Dissipation Capability (TA = 25℃):1.0W; (6)Surface Mount Solder Reflow Temperature:260℃ for 10 seconds; (7)Output Short Circuit Current:50 mA.

Features

SST25VF016B-75-4I-S2AF features: (1)Single Voltage Read and Write Operations:2.7-3.6V; (2)Serial Interface Architecture: SPI Compatible: Mode 0 and Mode 3; (3)High Speed Clock Frequency:Up to 80 MHz; (4)Superior Reliability: Endurance: 100,000 Cycles (typical), Greater than 100 years Data Retention; (5)Low Power Consumption: Active Read Current: 10 mA (typical), Standby Current: 5 μA (typical); (6)Flexible Erase Capability: Uniform 4 KByte sectors, Uniform 32 KByte overlay blocks, Uniform 64 KByte overlay blocks; (7)Fast Erase and Byte-Program: Chip-Erase Time: 35 ms (typical), Sector-/Block-Erase Time: 18 ms (typical), Byte-Program Time: 7 μs (typical); (8)Auto Address Increment (AAI) Programming: Decrease total chip programming time over ; (9)Byte-Program operations; (10)Hold Pin (HOLD#): Suspends a serial sequence to the memory without deselecting the device; (11)Write Protection (WP#): Enables/Disables the Lock-Down function of the status register; (12)Software Write Protection: Write protection through Block-Protection bits in status register.

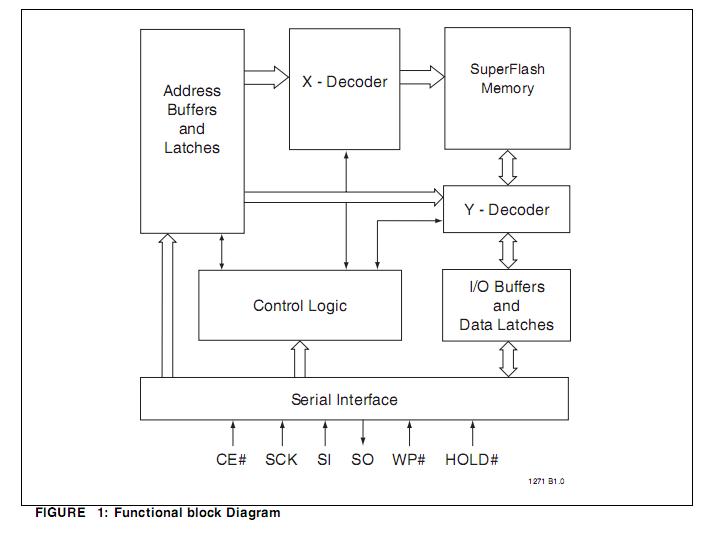

Diagrams
