Product Summary

The TPS62040DRCR is a high efficiency synchronous step-down dc-dc converter optimized for battery powered portable applications. The TPS62040DRCR is ideal for portable applications powered by a single Li-Ion battery cell or by 3-cell NiMH/NiCd batteries. With an output voltage range from 6.0 V down to 0.7 V, the TPS62040DRCR supportd low voltage DSPs and processors in PDAs, pocket PCs, as well as notebooks and subnotebook computers. The TPS62040DRCR operates at a fixed switching frequency of 1.25 MHz and enters the power save mode operation at light load currents to maintain high efficiency over the entire load current range. For low noise applications, the TPS62040DRCR can be forced into fixed frequency PWM mode by pulling the MODE pin high. The applications of the TPS62040DRCR include PDA, Pocket PC and Smart Phones, USB Powered Modems, CPUs and DSPs, PC Cards and Notebooks and xDSL Applications Standard 5-V to 3.3-V Conversion.

Parametrics

TPS62040DRCR absolute maximum ratings: (1)Supply voltage, VIN: -0.3 V to 7 V; (2)Voltages on EN, MODE, FB, SW: -0.3 V to VCC +0.3 V; (3)Operating junction temperature range: -40 to 150℃; (4)Storage temperature range: -65 to 150℃; (5)Lead temperature (soldering, 10 sec): 260℃.

Features

TPS62040DRCR features: (1)Up to 95% Conversion Efficiency; (2)Typical Quiescent Current: 18 μA; (3)Load Current: 1.2 A; (4)Operating Input Voltage Range: 2.5 V to 6.0 V; (5)Switching Frequency: 1.25 MHz; (6)Adjustable and Fixed Output Voltage ; (7)Power Save Mode Operation at Light load Currents; (8)100% Duty Cycle for Lowest Dropout; (9)Internal Softstart; (10)Dynamic Output Voltage Positioning; (11)Thermal Shutdown; (12)Short-Circuit Protection; (13)10 Pin MSOP PowerPad Package; (14)10 Pin QFN 3 X 3 mm Package.

Diagrams

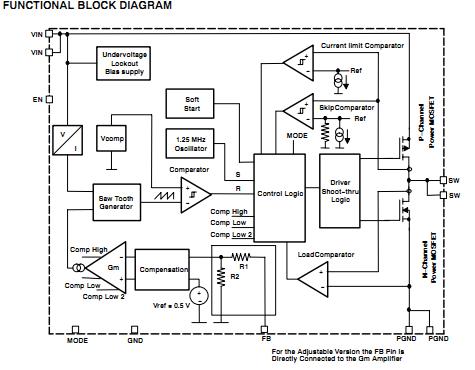

TPS62040DRCR functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

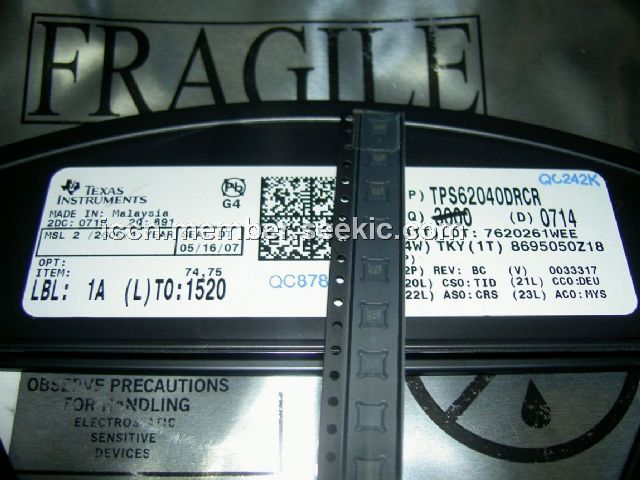

TPS62040DRCR
TPS62040DRCR
Texas Instruments
DC/DC Switching Regulators Adj 1.2A Hi-Eff Step-Down
Data Sheet
0-1: $2.21
1-25: $1.81
25-100: $1.72
100-250: $1.55
TPS62040DRCRG4
TPS62040DRCRG4
Texas Instruments
DC/DC Switching Regulators Adj 1.2A Hi-Eff Step-Down
Data Sheet
0-2230: $1.13
2230-3000: $1.09
3000-6000: $1.05
