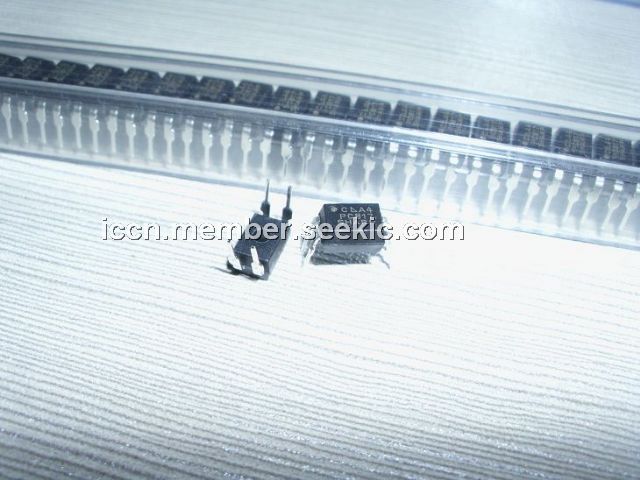

PC817

high density mounting type photocoupler, 1 A, 6 V, 70 mW, DIP4

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.16 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.08~0.16

PartNumber:: PC817

Brand:: Sharp Electrionic Components - Sharp | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-03

From Other Seller

Part Number:PC817
US $0.08 - 0.16
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PC817 is a high density mounting type photocoupler. Applications of the PC817 are computer terminals, system appliances, measuring instruments, registers, copiers, automatic vending machines, electric home appliances, such as fan heaters, etc., signal transmission between circuits of different potentials and impedances.

Parametrics

PC817 absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current IFM: 1 A; (3)Reverse voltage VR: 6 V; (4)Power dissipation P: 70 mW; (5)Collector-emitter voltage VCEO: 35 V; (6)Emitter-collector voltage VECO: 6 V; (7)Collector current IC: 50 mA; (8)Collector power dissipation PC: 150 mW; (9)Total power dissipation P tot: 200 mW; (10)2Isolation voltage Viso: 5 000Vrms; (11)Operating temperature T opr: - 30 to + 100 ℃; (12)Storage temperature T stg: - 55 to + 125 ℃; (13)3Soldering temperature T sol: 260 ℃.

Features

PC817 features: (1)Current transfer ratio ( CTR: MIN. 50% at I F = 5mA ,VCE=5V); (2)High isolation voltage between input and output; (3)Compact dual-in-line package 1-channel type; (4)Recognized by UL, file No. E64380.
