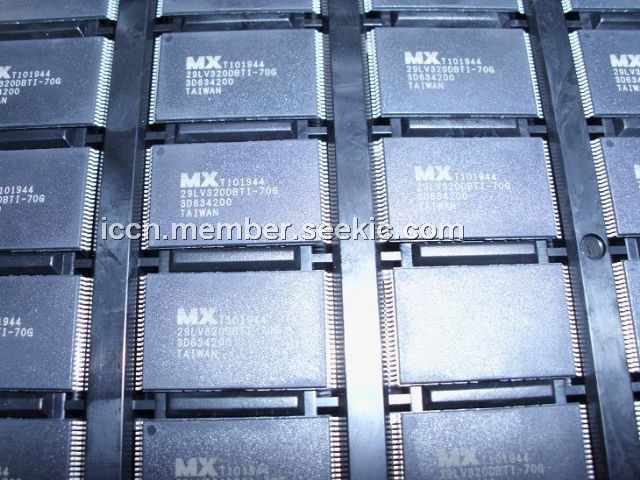

MX29LV320DBTI-70G

32M-bit, 3V supply flash memory, TSOP48, extra 64K-byte sector, 2.7V to 3.6V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.02~1.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.02~1.12

PartNumber:: MX29LV320DBTI-70G

Brand:: Macronix International - MXIC | Pack: TSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-06

From Other Seller

Part Number:MX29LV320DBTI-70G
US $1.02 - 1.12
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MX29LV320DBTI-70G is a 32Mbit flash memory that can be organized as 4Mbytes of 8bits each or as 2Mbytes of 16bits each. The MX29LV320DBTI-70G operates over a voltage range of 2.7V to 3.6V typically using a 3V power supply input. The MX29LV320DBTI-70G is offered in a 44-pin SOP, a 48-pin TSOP and a 48-ball CSP(TFBGA) JEDEC standard package. These packages are offered in leaded, as well as lead-free versions that are compliant to the RoHS specifications.

Parametrics

MX29LV320DBTI-70G absolute maximum ratings: (1)surrounding temperature with Bias:-65℃ to +125℃; (2)storage temperature:-65℃ to +125℃; (3)voltage range:-0.5V to +4.0V, -0.5V to +10.5V, -0.5V to VCC+0.5V; (4)output short circuit current:200mA.

Features

MX29LV320DBTI-70G features: (1)extra 64K-byte sector for security: features factory locked and identifiable, and customer lockable; (2)provides sector group protect function to prevent program or erase operation in the protected sector group; (3)provides chip unprotect function to allow code changing; (4)provides temporary sector group unprotect function for code changing in previously protected sector groups; (5)VCC 2.7V to 3.6V for read, erase, and program operations; (6)latch-up protected to 100mA from -1V to 1.5*VCC; (7)low VCC write inhibit:VCC≤VIko; (8)compatible with JEDEC standard; (9)high performance; (10)fast access time:70ns; (11)low power consumption; (12)low active read current:10mA(typical) at 5MHz; (13)low standby current:5uA(typical); (14)typical 100,000 erase/program cycle; (15)20 years data retention; (16)suspends sector erase operation to read data from or program data to another sector which is not being erased; (17)support common flash interface.
