Product Summary

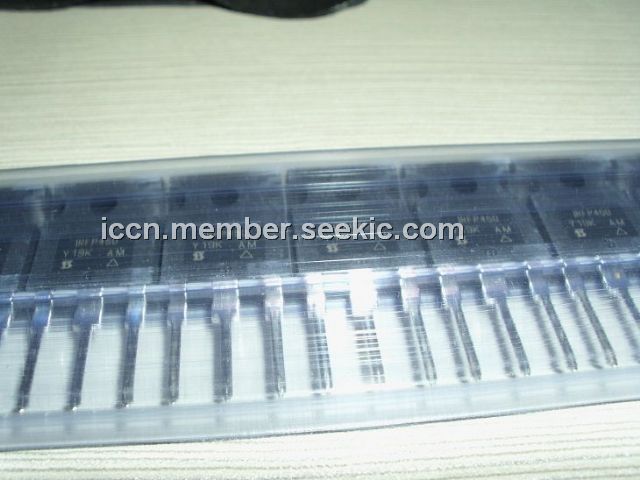

The IRFP450 is an N-Channel power MOSFET. The IRFP450 is designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. The IRFP450 is designed for applications such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits.
Parametrics
IRFP450 absolute maximum ratings: (1)Drain to Source Voltage VDS: 500 V; (2)Drain to Gate Voltage (RGS = 20kW) VDGR: 500 V; (3)Continuous Drain Current ID: 14 A; (4)Pulsed Drain Current IDM: 56 A; (5)Gate to Source Voltage VGS: ±20 V; (6)Maximum Power Dissipation PD: 180 W; (7)Linear Derating Factor: 1.44 W/℃; (8)Single Pulse Avalanche Energy Rating EAS: 860 mJ; (9)Operating and Storage Temperature TJ, TSTG: -55 to 150 ℃.
Features
IRFP450 features: (1)14A, 500V; (2)rDS(ON) = 0.400W; (3)Single Pulse Avalanche Energy Rated; (4)SOA is Power Dissipation Limited; (5)Nanosecond Switching Speeds; (6)Linear Transfer Characteristics; (7)High Input Impedance; (8)Related Literature TB334 guidelines for Soldering Surface Mount; (9)Components to PC Boards.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRFP450 |
Vishay/Siliconix |
MOSFET N-Chan 500V 14 Amp |
Data Sheet |
|
|
|||||||||||||
IRFP450, SiHFP450 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
IRFP450A |
Vishay/Siliconix |
MOSFET N-Chan 500V 14 Amp |
Data Sheet |
|
|
|||||||||||||
IRFP450_R4943 |
Fairchild Semiconductor |
MOSFET TO-247 N-Ch Power |
Data Sheet |
Negotiable |
|
|||||||||||||
IRFP450A_R4944 |
Fairchild Semiconductor |
MOSFET TO-3P |
Data Sheet |
Negotiable |
|
|||||||||||||
IRFP450A, SiHFP450A |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
IRFP450LCPBF |
Vishay/Siliconix |
MOSFET N-Chan 500V 14 Amp |
Data Sheet |
|
|
|||||||||||||
IRFP450APBF |
Vishay/Siliconix |
MOSFET N-Chan 500V 14 Amp |
Data Sheet |
|
|
