Product Summary

IRF9520N, the Fifth Generation HEXFET from International Rectifier, utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package for IRF9520N is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF9520N absolute maximum ratings: (1)Continuous Drain Current: -6.8A; (2)Continuous Drain Current: -4.8A; (3)Pulsed Drain Current: -27A; (4)Power Dissipation: 48W; (5)Linear Derating Factor: 0.32 W/℃; (6)Gate-to-Source Voltage: ±20 V; (7)Single Pulse Avalanche Energy: 140 mJ; (8)Avalanche Current: -4.0 A; (9)Repetitive Avalanche Energy: 4.8 mJ; (10)Peak Diode Recovery dv/dt: -5.0 V/ns; (11)Operating Junction and Storage Temperature Range: -55 to + 175℃; (12)Soldering Temperature, for 10 seconds 300: (1.6mm from case )℃; (13)Mounting torque, 6-32 or M3 srew: 10 lbf·in (1.1N·m).

Features

IRF9520N features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)P-Channel; (6)Fully Avalanche Rated.

Diagrams

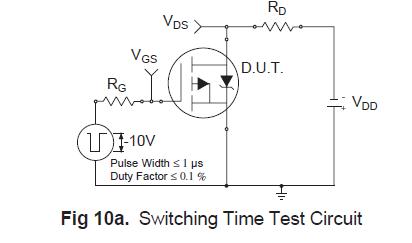

IRF9520N Switching Time Test Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF9520N
IRF9520N
International Rectifier
MOSFET P-CH 100V 6.8A TO-220AB
Data Sheet
1-450: $0.57
IRF9520NL
IRF9520NL

MOSFET P-CH 100V 6.8A TO-262
Data Sheet
Negotiable
IRF9520NSPBF
IRF9520NSPBF
International Rectifier
MOSFET MOSFT PCh -100V -6.8A 480mOhm 18nC
Data Sheet
0-1: $1.27
1-25: $0.82
25-100: $0.60
100-250: $0.56
IRF9520NLPBF
IRF9520NLPBF

MOSFET P-CH 100V 6.8A TO262-3
Data Sheet
0-550: $0.46
IRF9520NS
IRF9520NS

MOSFET P-CH 100V 6.8A D2PAK
Data Sheet
0-400: $0.61
IRF9520NPBF
IRF9520NPBF
International Rectifier
MOSFET P-CH 100V 6.8A TO-220AB
Data Sheet
1-10: $0.66
10-100: $0.48
100-250: $0.45
250-500: $0.43
500-1000: $0.40
1000-2500: $0.38
2500-10000: $0.35
IRF9520NSTRL
IRF9520NSTRL

MOSFET P-CH 100V 6.8A D2PAK
Data Sheet
0-800: $0.67
IRF9520NSTRR
IRF9520NSTRR

MOSFET P-CH 100V 6.8A D2PAK
Data Sheet
0-800: $0.70
