F2412S-2W

dc-dc converter, SIP7, 1s, F2412S-2W, Morsun

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.15~5.15 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $4.15~5.15

PartNumber:: F2412S-2W

Brand:: Morsun Technologies Co.,Ltd. - Morsun | Pack: SIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-09

From Other Seller

Part Number:F2412S-2W
US $4.15 - 5.15
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

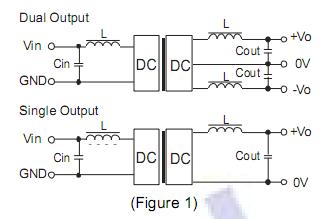

The F2412S-2W is a 2W, fixed input, isolated & unregulated dual/single output dc-dc converter. The F2412S-2W is specially designed for applications where a group of polar power supplies are isolated from the input power supply in a distributed power supply system on a circuit board.

Parametrics

F2412S-2W absolute maximum ratings: (1)Storage humidity range: 95 % ; (2)Operating Temp. Range: -40 to 85℃; (3)Storage Temp. Range: -55 to 125℃; (4)Temp. rise at full load: 15℃ typ, 25℃ max; (5)Lead temperature: 300℃; (6)Short circuit protection: 1s; (7)Cooling: Free air convection; (8)Case material: Plastic (UL94-V0); (9)MTBF: 3500 K hours; (10)Weight: 2.1g.

Features

F2412S-2W features: (1)High Efficiency up to 85%; (2)3000VDC Isolation; (3)SIP Package; (4)Internal SMD construction; (5)No Heat sink Required; (6)Temperature Range: -40 to +85℃; (7)No External Component Required; (8)Industry Standard Pinout; (9)RoHS Compliance.
