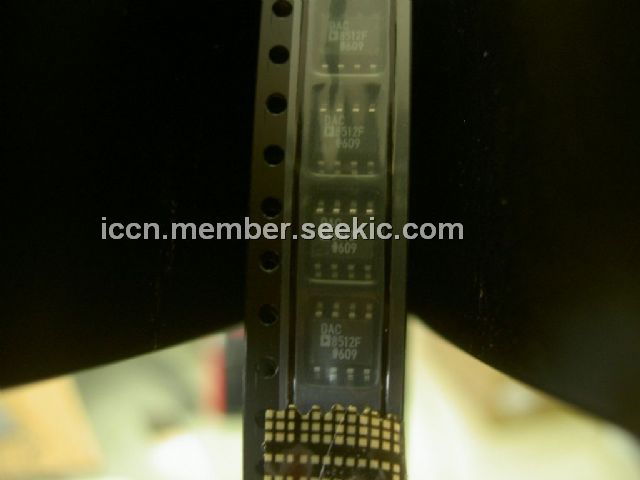

The DAC8512FSZ is a complete serial input, 12-bit, voltage output digital-to-analog converter designed to operate from a single +5 V supply. The DAC8512FSZ contains the DAC, input shift register and latches, reference and a rail-to-rail output amplifier. Built using a CBCMOS process, the monolithic DAC offers the user low cost, and ease of use in +5 V only systems. The applications of the DAC8512FSZ include Portable Instrumentation, Digitally Controlled Calibration, Servo Controls, Process Control Equipment and PC Peripherals.
Parametrics
DAC8512FSZ absolute maximum ratings: (1)VDD to GND: –0.3 V, +10 V; (2)Logic Inputs to GND: –0.3 V, VDD + 0.3 V; (3)VOUT to GND: –0.3 V, VDD + 0.3 V; (4)IOUT Short Circuit to GND: 50 mA; (5)Thermal Resistance θJA: 103℃/W; (6)Maximum Junction Temperature (TJ max): +150℃; (7)Operating Temperature Range:–40 to +85℃; (8)Storage Temperature Range:–65 to +150℃; (9)Lead Temperature (Soldering, 10 secs): +300℃
Features
DAC8512FSZ features: (1)Space Saving SO-8 or Mini-DIP Packages; (2)Complete, Voltage Output with Internal Reference; (3)1 mV/Bit with 4.095 V Full Scale; (4)Single +5 Volt Operation; (5)No External Components; (6)3-Wire Serial Data Interface, 20 MHz Data Loading Rate; (7)Low Power: 2.5 mW.

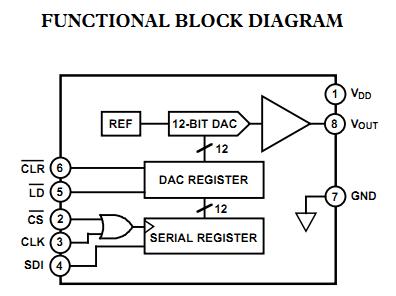

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DAC8512FSZ |
|
IC DAC 12BIT 5V COMPLETE 8-SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
DAC8512FSZ-REEL |
|
IC DAC 12BIT SRL LP 5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
DAC8512FSZ-REEL7 |
|
IC DAC 12BIT SRL LP 5V 8SOIC |
Data Sheet |
|
|
||||||||||||||||||
