Product Summary
The 2SA2025 is a PNP Epitaxial Planar Silicon Transistor. Applications include relay drivers, lamp drivers, motor drivers, strobes.
Parametrics
2SA2025 absolute maximum ratings: (1)Collector-to-Base Voltage:–15 V; (2)Collector-to-Emitter Voltage: -12 V; (3)Emitter-to-Base Voltage:–5 V; (4)Collector Current: –3 A; (5)Collector Current (Pulse):–5 A; (6)Base Current:–600 mA; (7)Collector Dissipation: 0.55 W; (8)Junction Temperature: 150℃; (9)Storage Temperature:–55 to +150℃.
Features
2SA2025 features:(1)Adoption of MBIT processes; (2)Large current capacitance; (3)Low collector-to-emitter saturation voltage; (4)High-speed switching; (5)Ultrasmall-sized package permitting applied sets to be made small and slim; (6)High allowable power dissipation.

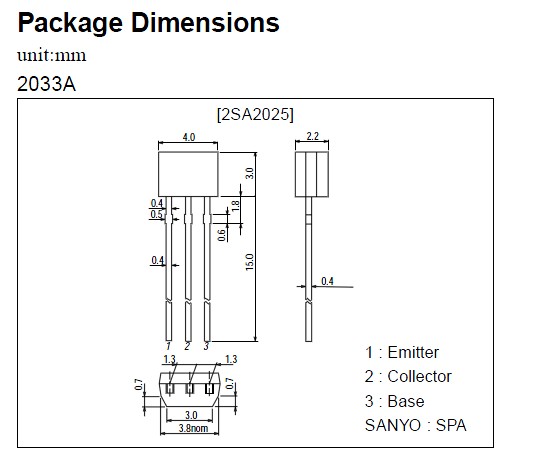

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA2025 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
