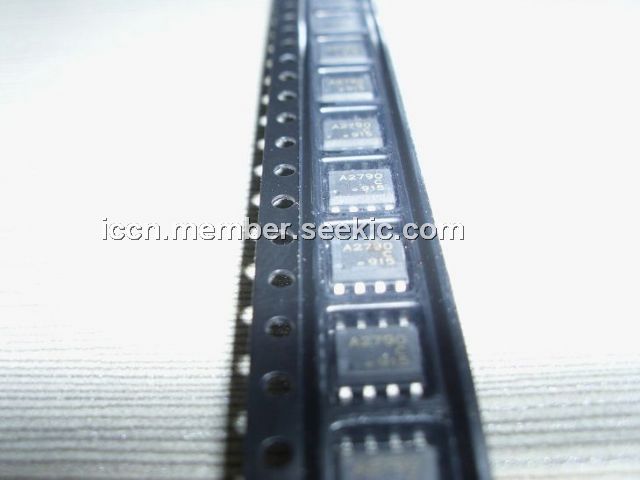

UPA2790GR

UPA2790GR, SWITCHING N- AND P-CHANNEL POWER MOS FET, 30V, 6A, 1.7W, SOP8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.38~0.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.38~0.45

PartNumber:: UPA2790GR

Brand:: NEC - Nec | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-03

From Other Seller

Part Number:UPA2790GR
US $0.38 - 0.45
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
LA76810A

US $0.90 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The UPA2790GR is a switching n- and p-channel power MOS FET.

Parametrics

UPA2790GR absolute maximum ratings: (1)Drain to Source Voltage (VGS = 0 V)VDSS: 30V; (2)Gate to Source Voltage (VDS = 0 V)VGSS: 20V; (3)Drain Current (DC)ID(DC): 6A; (4)Drain Current (pulse)ID(pulse): 24A; (5)Total Power Dissipation (1 unit)PT: 1.7 W; (6)Total Power Dissipation (2 units)PT: 2.0 W; (7)Channel Temperature Tch: 150 ℃; (8)Storage Temperature Tstg: -55 to +150 ℃; (9)Single Avalanche Current IAS: 6A; (10)Single Avalanche Energy EAS: 3.6 mJ.

Features

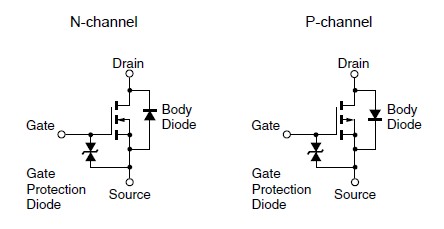

UPA2790GR features: (1)Low on-state resistance; (2)N-channel RDS(on)1 = 28 mΩ MAX. (VGS = 10 V, ID = 3 A); (3)RDS(on)2 = 40 mΩ MAX. (VGS = 4.5 V, ID = 3 A); (4)P-channel RDS(on)1 = 60 mΩ MAX. (VGS = -10 V, ID = -3 A); (5)RDS(on)2 = 80 mΩ MAX. (VGS = -4.5 V, ID = -3 A); (6)Low input capacitance N-channel Ciss = 500 pF TYP P-channel Ciss = 460 pF TYP; (7)Built-in gate protection diode; (8)Small and surface mount package (Power SOP8).
