Product Summary

The TF202C-E5-TL-H is an N-channel Silicon Junction FET. It is suitable for Electret Condenser Microphone Applications.

Parametrics

TF202C-E5-TL-H absolute maximum ratings: (1)Gate-to-Drain Voltage, VGDO: -20 V; (2)Gate Current, IG: 10 mA; (3)Drain Current, ID: 1mA; (4)Allowable Power Dissipation, PD: 100 mW; (5)Junction Temperature, Tj: 150℃; (6)Storage Temperature, Tstg: -55 to +150℃.

Features

TF202C-E5-TL-H features: (1)Especially suited for use in electret condenser microphone for audio equipments and telephones; (2)Ultrasmall package permitting applied sets to be small and slim; (3)Excellent voltage characteristics; (4)Excellent transient characteristics; (5)Adoption of FBET process.

Diagrams

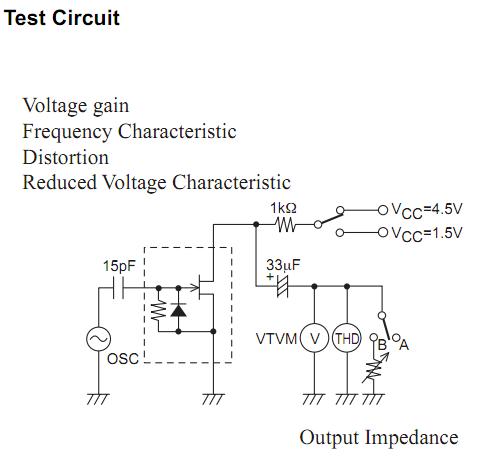

TF202C-E5-TL-H test circuit
