Product Summary

The PIC16F876A-I/SP is an enhanced flash microcontroller. The PIC16F876A-I/SP is available only in 28-pin packages.


Parametrics

PIC16F876A-I/SP absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125°C; (2)Storage temperature: -65°C to +150°C; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: 0 to +14V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA, PORTB and PORTE (combined) : 200 mA; (15)Maximum current sourced by PORTA, PORTB and PORTE (combined): 200 mA; (16)Maximum current sunk by PORTC and PORTD (combined): 200 mA; (17)Maximum current sourced by PORTC and PORTD (combined) : 200 mA.

Features

PIC16F876A-I/SP features: (1)Timer0: 8-bit timer/counter with 8-bit prescaler; (2)Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock; (3)Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler; (4)Two Capture, Compare, PWM modules Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address; (5)detection; (6)Parallel Slave Port (PSP) 8 bits wide with external RD, WR and CS controls (40/44-pin only); (7)Brown-out detection circuitry for Brown-out Reset (BOR).

Diagrams

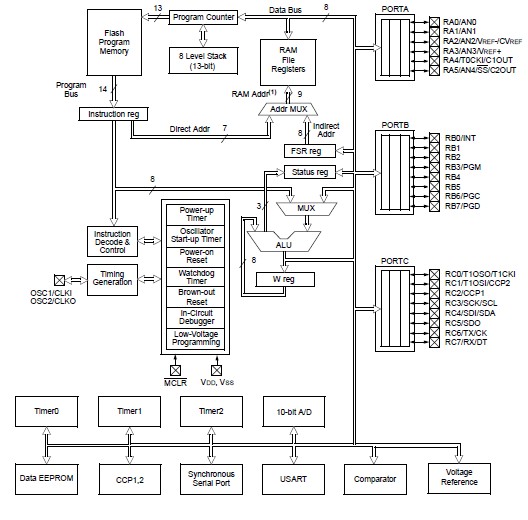

PIC16F876A-I/SP dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F876A-I/SP
PIC16F876A-I/SP

Microchip Technology

8-bit Microcontrollers (MCU) 14KB 368 RAM 22 I/O

Data Sheet

0-1: $3.40
1-10: $2.72
10-25: $2.65
25-100: $2.57
PIC16F876A-I/SPG
PIC16F876A-I/SPG

Microchip Technology

8-bit Microcontrollers (MCU) 14KB 368 RAM 22 I/O

Data Sheet

Negotiable
PIC16F876A-I/SPREL
PIC16F876A-I/SPREL

Other


Data Sheet

Negotiable
