Product Summary
The XTR105UA is a monolithic 4-20mA, two-wire current transmitter with two precision current sources. It provides complete current excitation for Platinum RTD temperature sensors and bridges, instrumentation amplifier, and current output circuitry on a single integrated circuit.
Parametrics
XTR105UA absolute maximum ratings: (1)Power Supply, V+ (referenced to IO pin): 40V; (2)Input Voltage, VIN, VIN (referenced to IO pin): 0V to V+; (3)Storage Temperature Range: –55℃ to +125℃; (4)Lead Temperature (soldering, 10s): +300℃; (5)Output Current Limit: Continuous; (6)Junction Temperature: +165℃.
Features
XTR105UA features: (1)Low unadjusted error; (2)Two precision current sources 800μA each; (3)RTD or bridge excitation; (4)Linearization; (5)Two or three-wire rtd operation; (6)Low offset drift: 0.4mV/℃; (7)Low output current noise: 30nAp-p; (8)High PSR: 110dB min; (9)High CMR: 86dB min; (10)Wide supply range: 7.5V TO 36V; (11)14-pin dip and so-14 soic packages.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XTR105UA |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
|

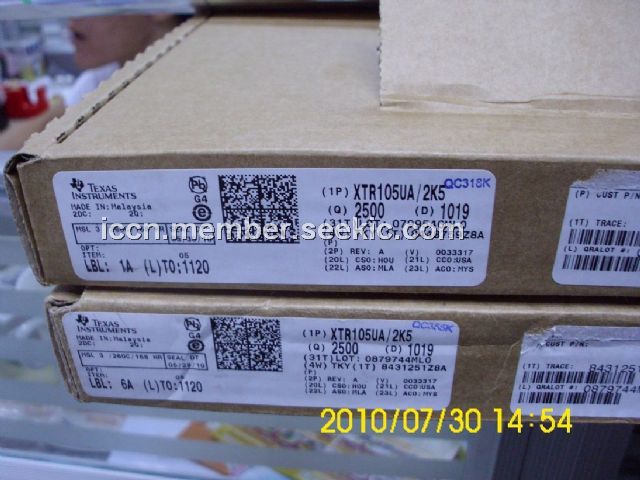

XTR105UA/2K5 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR105UA/2K5E4 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
|
XTR105UAG4 |
Texas Instruments |
Current Sense Amplifiers 4-20mA Crnt Trnsmtr w/Sensor Exc & Lin |
Data Sheet |
|
|
||||||||||||
