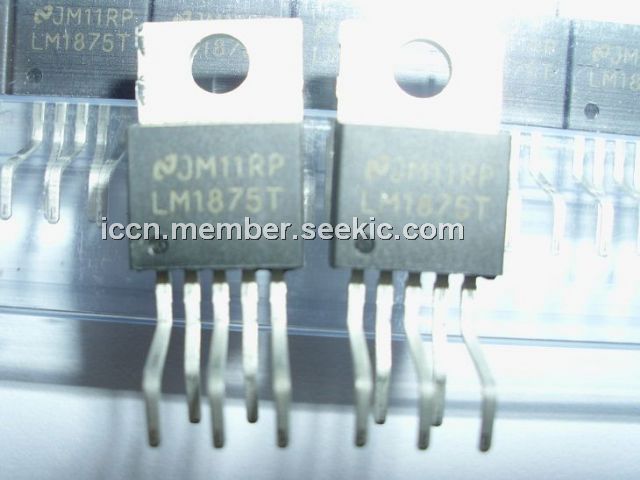

LM1875T

audio power amplifier, 60V, 90 dB, 4A, TO-5D

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.55~0.75 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.55~0.75

PartNumber:: LM1875T

Brand:: National Semiconductor - NS | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. yakenlin's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-30

From Other Seller

Part Number:LM1875T
US $0.55 - 0.75
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM1875T is an audio power amplifier. The LM1875T is a monolithic power amplifier offering very low distortion and high quality performance for consumer audio applications. The LM1875T design takes advantage of advanced circuit techniques and processing to achieve extremely low distortion levels even at high output power levels. Other outstanding features include high gain, fast slew rate and a wide power bandwidth, large output voltage swing, high current capability, and a very wide supply range. The amplifier is internally compensated and stable for gains of 10 or greater.

Parametrics

LM1875T absolute maximum ratings: (1)Supply Voltage: 60V; (2)Input Voltage: -VEE to VCC; (3)Storage Temperature: -65℃ to + 150℃; (4)Junction Temperature: 150℃; (5)Lead Temperature: (Soldering, 10 seconds) 260℃; θJC 3℃; θJA 73℃.

Features

LM1875T features: (1)Up to 30 watts output power; (2)AVO typically 90 dB; (3)Low distortion: 0.015%, 1 kHz, 20 W; (4)Wide power bandwidth: 70 kHz; (5)Protectiofor AC and DC short circuits to ground; (6)Thermal protectiowith parole circuit; (7)High current capability: 4A; (8)Wide supply range 16V-60V; (9)Internal output protectiodiodes; (10)94 dB ripple rejection; (11)Plastic power package TO-220.
