Product Summary

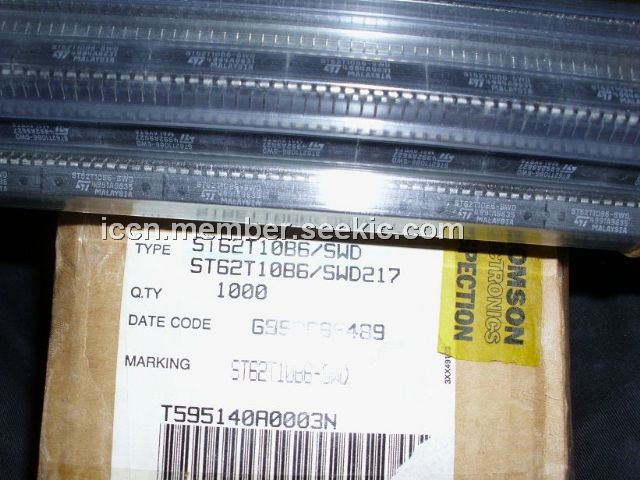

The ST62T10B6 is an 8-bit OTP/EPROM MCU. It is targeted at low to medium complexity applications. The ST62T10B6 is based on a building block approachL a common core is surrounded by a number of on-chip peripherals.The ST62T10B6 features a timer comprising an 8-bit counter and a 7-bit programmable prescaler, an 8-bit A/D converter with 8-16 analog inputs and a digital watchdog timer, making it well suited for a wide range of automotive, appliance and industrial applications.
Parametrics
ST62T10B6 absolute maximum ratings: (1)supply voltage:-0.3V to 7.0V; (2)input voltage: VSS-0.3V to VDD+0.3V; (3)output voltage: VSS-0.3V to VDD+0.3V; (4)OTP/EPROM programming voltage:13V; (5)current drain per pin excluding VDD, VSS:10mA; (6)total current into VDD:50mA; (7)total current out of VSS:50mA; (8)junction temperature:150℃; (9)storage temperature:-60℃ to 150℃.
Features
ST62T10B6 features: (1)3.0V to 6.0V supply operating range; (2)8MHz maximum clock frequency; (3)-40 to +85℃ operating temperature range; (4)run, wait and stop modes; (5)5 interrupt vectors; (6)look-up table capability in OTP/EPROM; (7)data OTP/EPROM:user selectable size; (8)4 I/O lines can sink up to 20mA to drive LEDs or TRIACs directly; (9)8-bit timer with 7-bit programmable prescaler and external input; (10)digital watchdog; (11)on-chip clock oscillator can be driven by quartz crvstal or ceramic resonator; (12)power-on reset; (13)one external non-maskable interrupt.
Diagrams
 |
